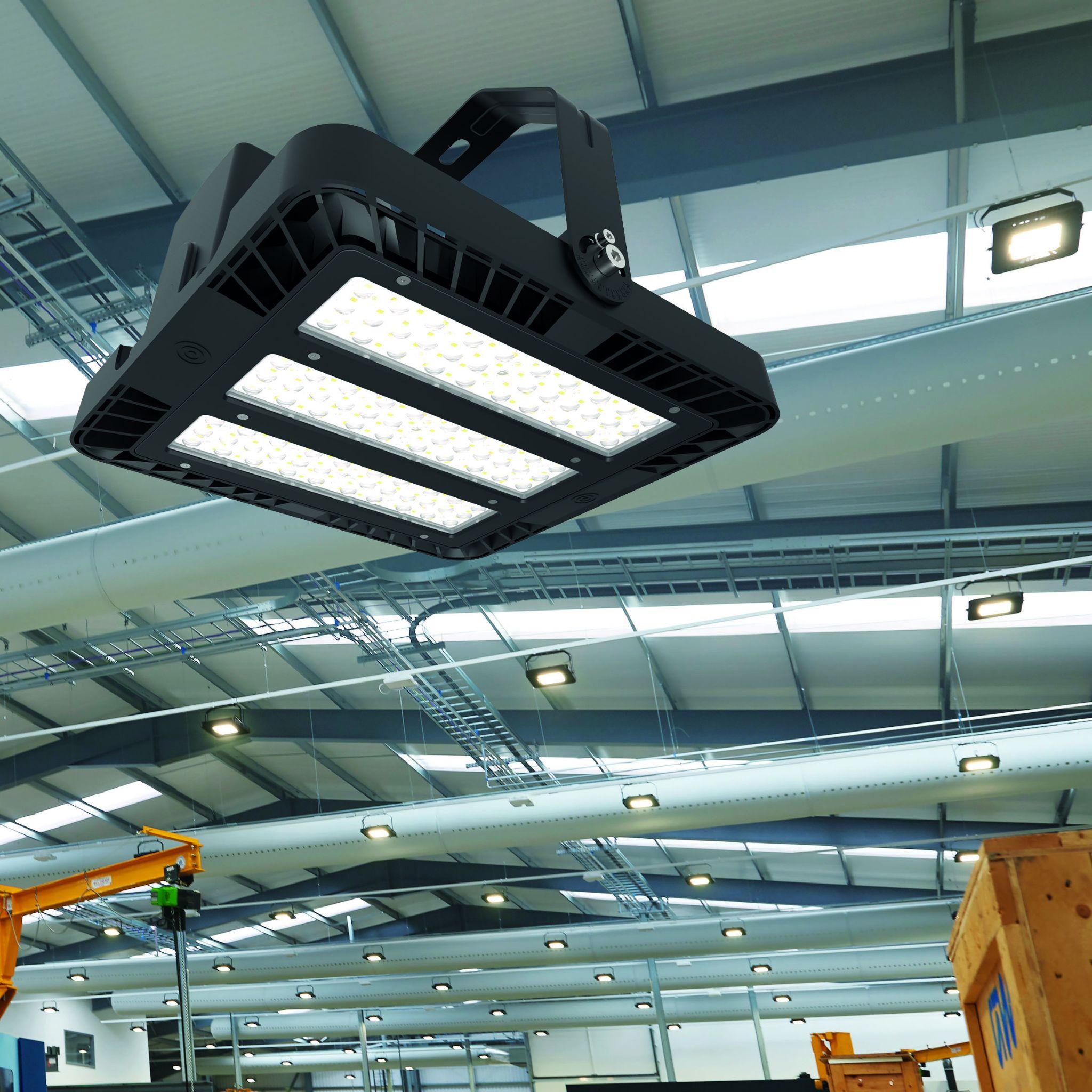

Luceco LED Highbay Light LHBR 150W (23100lm)
Product Features
IP65 highbay with industry-leading efficacy
Multiple mounting options
Integrated heat sink
IP65 PIR sensor compatible
IP65 Integrated emergency
Stainless steel hardware
0-10V Dimmable
Supplied with 2′ of SJTW cable
1′ safety chain included
Color Temperature: 4000K, 5000K
Efficacy: Up to 160lm/W
Lumen Maintenance: L70 calculated at 100,000hrs
IP Rating: IP65
Beam Angle: 60°, 90°, 120°
Product Description
Construction
Die-cast aluminum housing
Discrete sealed gasketed driver compartment and lens compartment
Integrated open frame convection cooling heat sink for optimal thermal dissipation
Stainless steel hardware
Body Finish
Powdercoat finish in Black
All parts painted after fabrication to facilitate safe installation with smooth edges, increase efficiency, and inhibit corrosion
Lens
Precision molded UV stabilized polycarbonate optics
Beam Angle: 60°, 90°, 120°
Optics
Very Wide NEMA 7×7
Power Factor
Greater than 0.98
IP Rating: IP65
Lumen Maintenance
L70 calculated at 100,000hrs
Control Options
0-10V Dimming
PIR occupancy sensor compatible
Integrated emergency
Mounting Options
Trunnion mount with bolt/washer hardware and allen wrenches to fasten onto fixture included
Mounting hook with 1′ safety chain included
Product includes 3/4 threaded NPT for pendant mounting (hardware by others)
Color Temperature: 4000K, 5000K
Efficacy: Up to 160lm/W
Ignition Time
Less than 1sec
Operating Temperature
-20°C to 55°C
